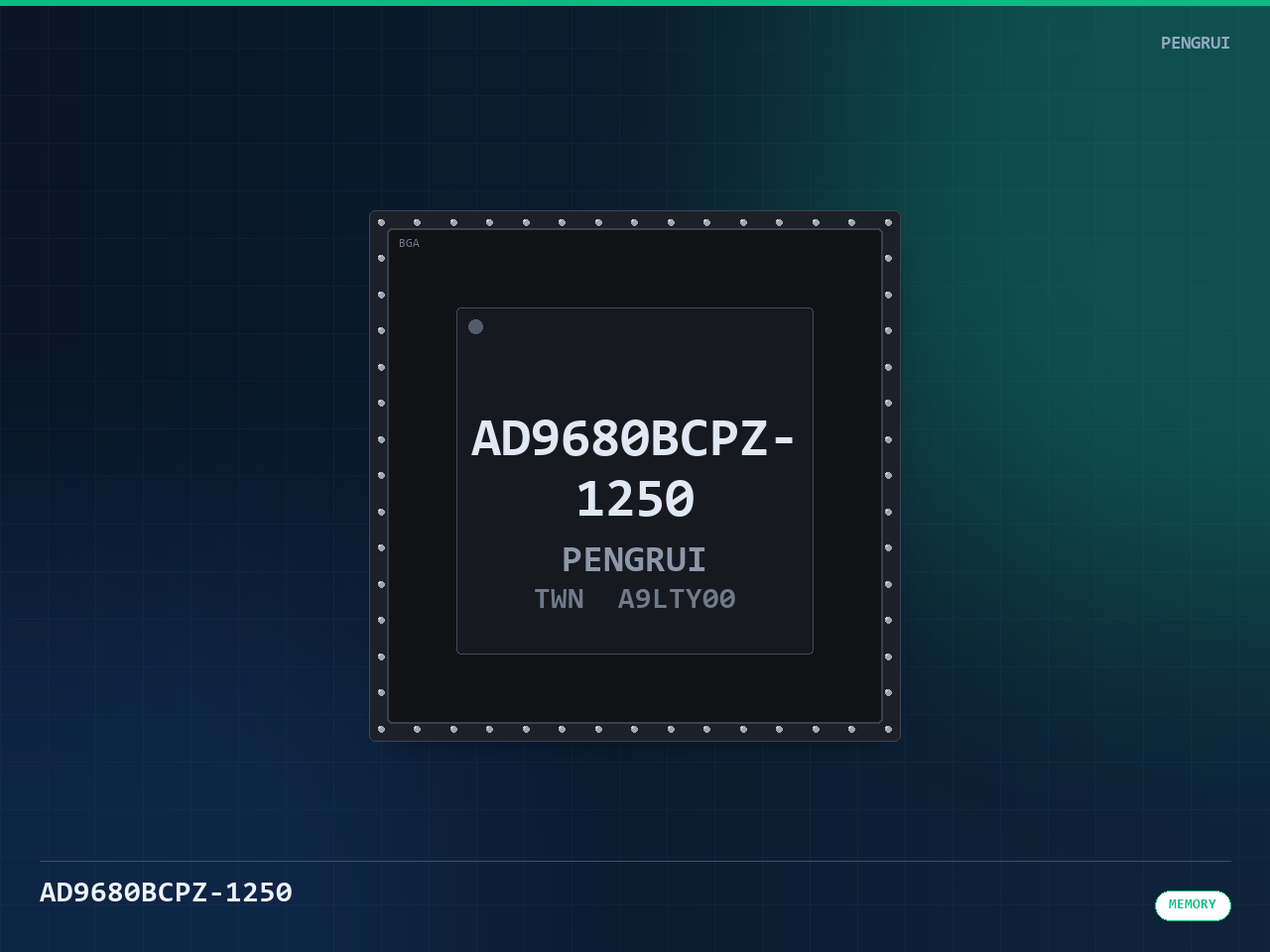

High-Speed ADC 14-bit 1.25 GSPS
AD9680BCPZ-1250
Dual 14-bit 1.25 GSPS analog-to-digital converter with JESD204B output, suited to direct RF sampling architectures.
Add this part to your quote list to request several line items together, or send the ordering code directly and we will confirm the available lot, packaging and date code.
Key specifications
| Resolution | 14 bit, dual channel |
|---|---|
| Sample rate | 1.25 GSPS per channel |
| Interface | JESD204B, 12.5 Gb/s lanes |
| SFDR | 82 dBFS at 340 MHz |
| Package | LFCSP-64 |
| Supply | 1.25 V / 2.5 V |
Direct RF sampling
1.25 GSPS at 14 bits lets an ADC capture wide bandwidth directly at RF, removing mixing stages from the signal chain. The JESD204B serial output maps cleanly onto FPGA transceivers.
- Dual channel with independent sample rates
- JESD204B subclass 1 for deterministic latency
- On-chip buffer and digital down-converter options
